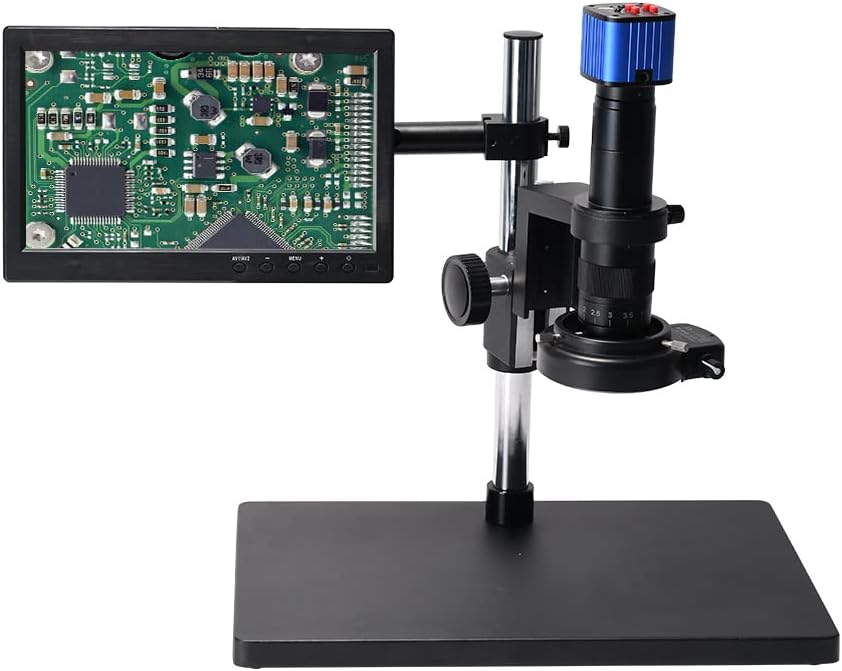

16MP HDMI USB Microscope Camera with 10.1 inch LCD Monitor and 144 LED Light I665
16MP HDMI USB Microscope Camera with 10.1 inch LCD Monitor and 144 LED Light I665

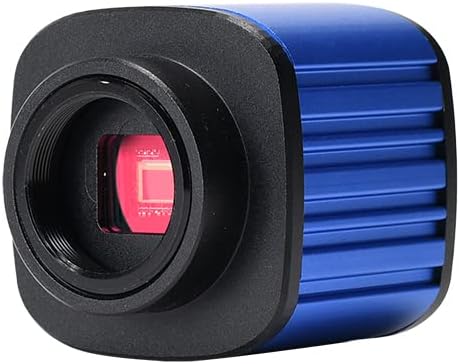

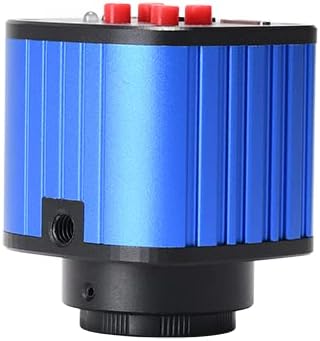

16MP HDMI Industrial microscope Camera with Sony 1/2.5 inch CMOS sensor, 2.85 × 2.85μm pixel size with max resolution 4608*3456 via HDMI output for image snapshot.
Support TF card memory stroge up to 64GB, support both snapshots and videos recorder in TF card. High speed up to 30fps@1080P, 60fps@720P. Support live time display without lag off.
Digital USB port is plug and play, no need any drivers.Calibration software is compatibled with Win XP/7/8/10. We also have measurment software for Mac. Firmware upgrade and support will be posted in offical website.
10.1 inch monitor is bigger size and better resolution in 1920 * 800. HDMI compatible, plug and play. 180X optical zoom lens has continuous zooming from 0.7X to 4.5X, standard working distance 100mm. If you want more working distance, you can add the Barlow lens 0.3X or 0.5X. If you want more magnification, please choose 2X Barlow lens.
This microscope camera kit is better for mobilephone repair, pcb inspecation repair and soldering. Technical educating class which displays to students in live time.
Also, the HDMI microscope camera kit is applicable for jewellery inspeiction, lab observation, coin/ coins collection or other tiny things observation. It is widly use in various fields and industries.
Specification:
Image sensor: SONY CMOS 1/2.9
Pexil size: 2.85 × 2.85μm
Video output: full hd 1080p ( via HDMI), 720P( vis USB)
Image resolution: 4608*3456( via HDMI)
Video recording: 1080p viaHDMI
Image format: jpeg
Lens: C/CS
Resolution:1920*1080@30fps, 60fps@720P
TF card interface: max 64G
Pc support: windows XP/7/8/10 system, HAYEAR measure software ( gift)
Digital zoom: 4 times digital zoom
Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
Camera dimension: 50mm*50mm*43mm
Package dimension:16cm*10cm*8cm / 0.3kg
Objective: continuous zoom 0.7-4.5X,
Zoom ratio: 6.4:1
Eyepiece: 0.5X
Zoom range: 10X-180X. Optional Barlow Objective: 0.3X, 0.5X, 0.75X, 1.0X, 2.0X (Excluding)
Working distance: standard working distance 100mm, can be to 100mm to 200mm by adding barlow lens

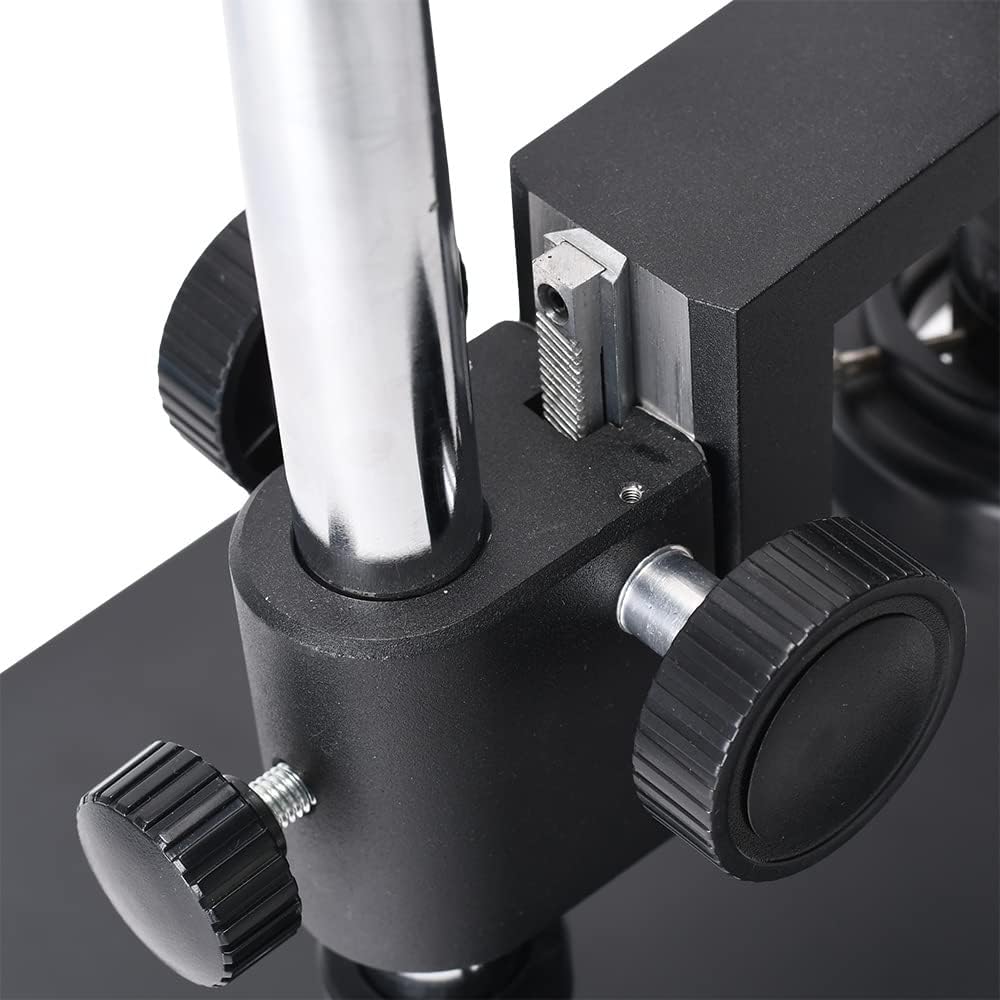

Focusing mechanism: adjustable focusing hand wheel, focusing range 63mm and 50mm
10.1 inch monitor Specification:
Screen Size : 10.1'
Aspect Ratio : 16 : 9
Display Model: IPS
Screen Resolution: 1920*800
Screen Brightness : 350 cd/m^2(Typ.)
Screen Contrast : 800 : 1 (Typ.)
Response Time : <10ms
Viewing Angle: 85/85/85/85(Typ.)(CR>10)(L/R/U/D)
Video Input : VGA,BNC,HDMI
Audio : PC audio in Earphone speaker out
Menu Language :English / French / German / Chinese Simplified / Italian / Spanish / Portuguese / Japanese/ Korean
Operating Temperature : 0 ~ 45 degree celsius
Power Supply :Input: AC 100~240V, 50~60Hz (worldwide voltage) Output: DC 12V, 2A
Material : ABS
Dimensions : approx. 250 (W) x 165 (H) x 32 (D) mm approx.
Package Including:
1 x 16MP camera with full set of accessories (USB cable/remote control/power supply/disk)
1 x 180X zoom lens
1 x 10.1 inch monitor and power supply

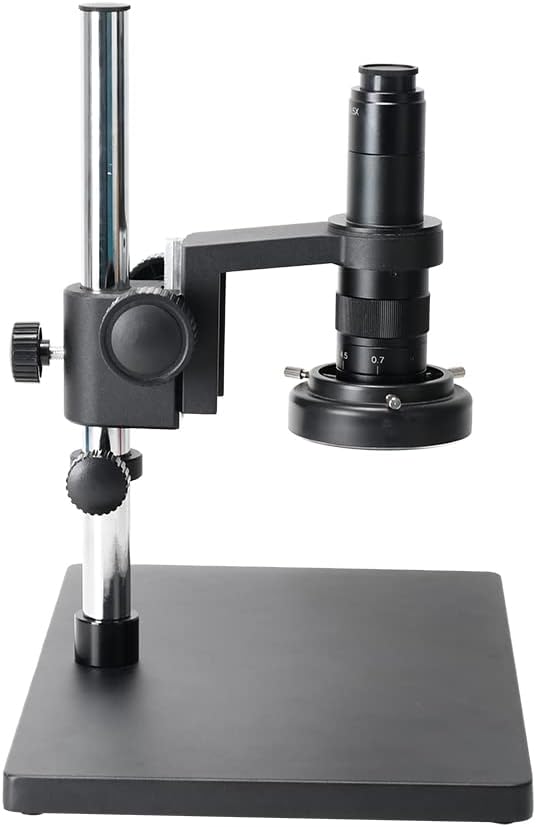

1 x full set of stand

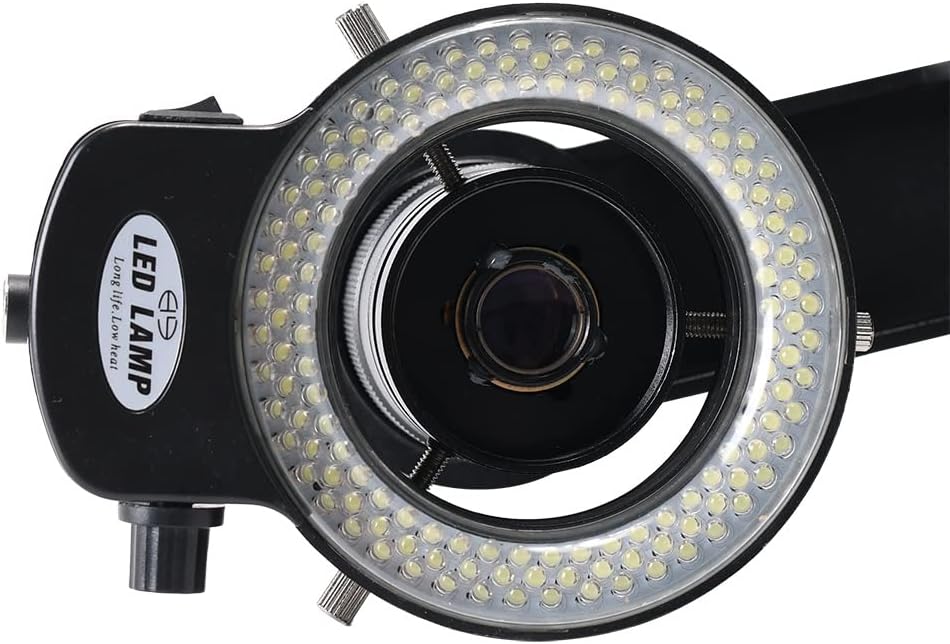

1 x 144 LED ring light
1 x monitor holding bar
